For model Tune Up Speaker For Car Stereo TS-M4, Pioneer Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1985 Type: Loudspeaker (speaker or headphone)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
Power out
from Radiomuseum.org Model: Tune Up Speaker For Car Stereo TS-M4 - Pioneer Corporation; Tokyo
Material Special material, described in the notes.
Shape Miscellaneous shapes - described under notes.

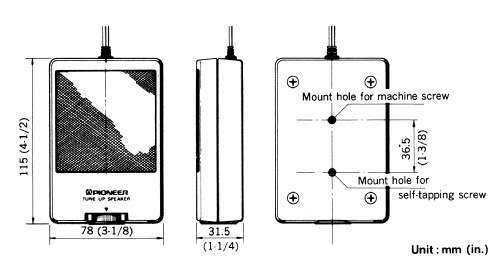

Dimensions (WHD) 78 x 115 x 31.5 mm / 3.1 x 4.5 x 1.2 inch
Notes

Zusatzhochtonlautsprecher im geschlossenen Gehäuse (Farbe = schwarz); Gehäuse hochkant aus feuerbeständigem Harz mit Metallgitter vor dem Lautsprecher; eingebauter Lautstärkeregler R = 40 Ω (lin); eingebauter Koppelkondensator C = 40 µF zur Begrenzung der unteren Grenzfrequenz. Impedanz des Lautsprecherchassis = 8 Ω. Wurde paarweise im Set einschl. Befestigungsmaterial geliefert. Einsatzbereich: Zusatzhochtöner für Kfz. In den 1980er Jahren sehr gute Testergebnisse in der Fachpresse.

Net weight (2.2 lb = 1 kg) 0.380 kg / 0 lb 13.4 oz (0.837 lb)
Source of data -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
