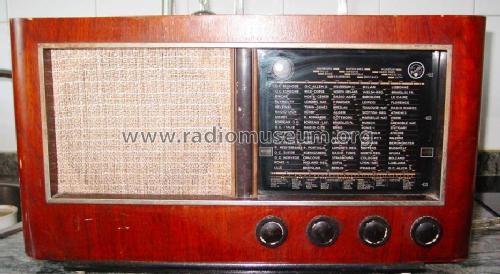

A866 (A 866)

ID = 120466

Country: France	Manufacturer/Brand: Point Bleu, Ets.; - voir aussi Blaupunkt (D)
Year: 1941 ??	Type: Radio or Tuner
Valves / Tubes	5: ECH3 EBF2 EF9 EL3N EM4 1883
schematic requested

Principle	Super-Heterodyne (Super in general); 2 AF-stage(s)
Wave bands	Broadcast, Long Wave and 2 x Short Wave.
Power type and voltage	Alternating Current supply (AC) / 110-240 Volt
Loudspeaker/pwr.out	Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
from Radiomuseum.org	Model: A866
Material	Wooden case
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	570 x 305 x 260 mm / 22.4 x 12 x 10.2 inch

This model was suggested by Michael John.
