Minifon (nicht Miniphon) Hifi

Minifon Hifi ; Protona GmbH; (ID = 2104119) R-Player

Minifon Hifi ; Protona GmbH; (ID = 2104120) R-Player
Minifon Hifi ; Protona GmbH; (ID = 1189867) R-Player Minifon Hifi ; Protona GmbH; (ID = 1190498) R-Player
Minifon Hifi ; Protona GmbH; (ID = 1197903) R-Player Minifon Hifi ; Protona GmbH; (ID = 1197904) R-Player
Minifon Hifi ; Protona GmbH; (ID = 1197905) R-Player Minifon Hifi ; Protona GmbH; (ID = 1197908) R-Player
Minifon Hifi ; Protona GmbH; (ID = 1197911) R-Player Minifon Hifi ; Protona GmbH; (ID = 1197912) R-Player
Minifon Hifi ; Protona GmbH; (ID = 1789155) R-Player
Use red slider bar for more.
Minifon Hifi ; Protona GmbH; (ID = 1189867) R-Player

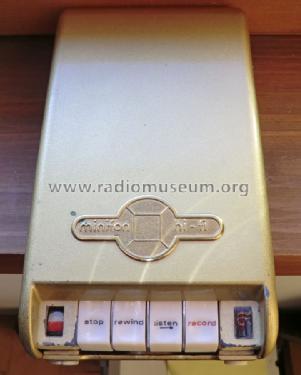

Protona GmbH;: Minifon Hifi [R-Player] ID = 1189867 723x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minifon (nicht Miniphon) Hifi, Protona GmbH; Hamburg

Country:  Germany
Manufacturer / Brand:  Protona GmbH; Hamburg
Year: 1961/1962 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 12:
Main principle Audio-Amplification
Details Special Tape or Cassette-Format
Power type and voltage Storage and/or dry batteries / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Minifon Hifi - Protona GmbH; Hamburg
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 102 x 42 x 175 mm / 4 x 1.7 x 6.9 inch
Notes

Frequenzgang 40-12000 Hz.
Von 1962 - 1967 Produktion bei Telefunken.

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 985.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Roland Schellin, Minifon - der Spion in der Tasche
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Reimund REINHARDT. See "Data change" for further contributors.



All listed radios etc. from Protona GmbH; Hamburg
Here you find 31 models, 25 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Protona GmbH;: Minifon Hifi
Threads: 1 | Posts: 1
Hits: 1142     Replies: 0
protona: Minifon Hifi
Wolfgang Scheida
01.Nov.08
  1

Die Protona Service Anweisung Ausgabe 1 vom November 1959 nimmt bezug ab dem Gerät Nr. 505 019





Dieser Beitrag kann nach Klärung der Details und Übernahme in den Modelltext gelöscht werden.
