• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115968

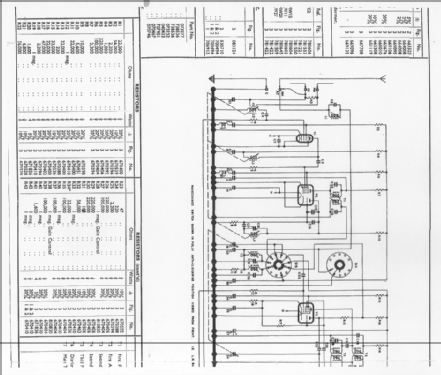

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF80 ECF80 ECH81 EF85 EM34 EABC80 EF80 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 200-250 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org

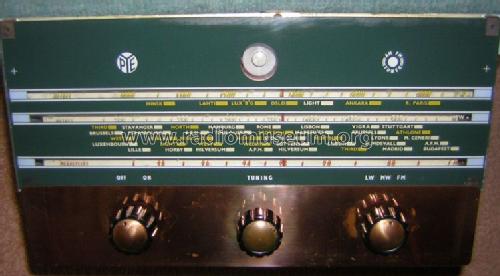

• Model: HFT111 - Pye Ltd., Radio Works;

• Shape
• Book-shelf unit.

• Notes
• For this Pye tuner there is a joint G-Plan and Pye leaflet entitled "Two in Harmony" made by E. Gomme Ltd. in High Wycombe (EG). It is to publicise furniture to accomodate hi-fi equipment with the undertitle "High Fidelity comes to your home". Five pieces of occasional furniture are shown: T933 loudspeaker cabinet, T938 Admiral's Chest loudspeaker cabinet, T932 hi-fi cabinet, T935 Admiral's Chest hi-fi cabinet, T934 home entertainment centre. The Pye equipment featured is; HF10 Mozart amplifier, HF108 Mozart FM tuner, HF25A Provost 25W amplifier and remote control, HFT111 FM/AM tuner. This brochure has the date 1959. Therefore thsi tuner can have been on the market quite a while before.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.

• Other Models

• Here you find 620 models, 476 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
