• Year
  • 1949–1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 97058

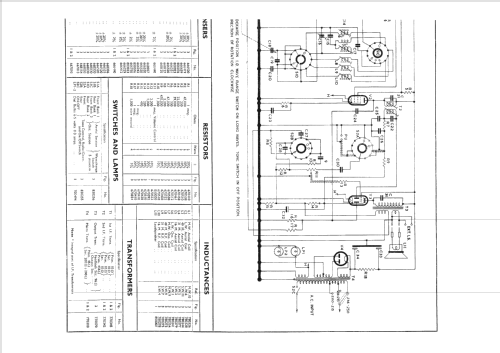

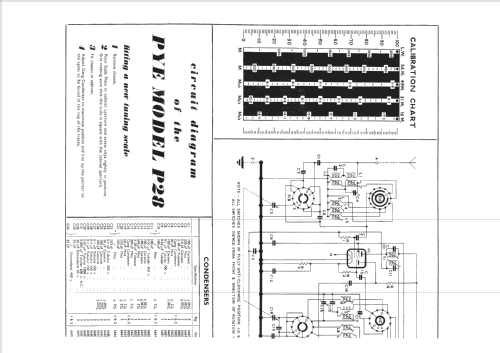

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: P28 - Pye Ltd., Radio Works;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 435 x 287 x 240 mm / 17.1 x 11.3 x 9.4 inch
  • Notes
  • Wave Bands

    • LW 1100 ... 2100 m
    • MW 185 ... 570 m
    • SW1 49 m (5.9 ... 6.3 MHz)
    • SW2 31 m (9.3 ... 10.0 MHz)
    • SW3 16 m (17.3 ... 18.3 MHz)

    "Short" superhet using only EBL31 for detector and all audio. IF is curiously Loctal EF22 rather than EF39 or similar Octal on Trader, R&TVS etc, but certainly some models are factory fitted with EF39 (printed on layout on Model plate)

    There is a "lowboy" style console "gram" version P28RG with drawer mounted "changer"

  • Price in first year of sale
  • 18.00 GBP
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
