Model: P.C.R. (PCR)
Antique radios, Old Time Radios
P.C.R. (PCR)
Country:
Great Britain (UK)
Manufacturer/Brand:
Pye Ltd., Radio Works; Cambridge
Year: 1944
Type:
Communication Receiver (also Amateur)Receiver used for civil commercial purposes, e.g. point-to-point maritime or aviation communications, used or second hand sets often used by radio amateurs. Often used also for military communications, partly special variants to military specifications.
Mod.-ID = 93749
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 0 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 465 kHzSuperhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Wave bands
Broadcast, Long Wave and Short Wave.LW, MW/BC and SW (long-, medium- and short waves).
GO, PO et OC (grandes ondes, petites ondes et ondes courtes).
LW, MW, KW.
Wahrscheinlich sind keine Bänder unterteilt, was aus den Unterlagen nicht ersichtlich war.
Standard-KW-Bereich ist 16 bis 49 m. Manche Rundfunkempfänger beginnen bei 13, andere bei 19 m. Äusserst selten geht der Bereich über 49 m hinaus ins Tropenband.
Power type and voltage
Supplied through Main Unit / 250 / 12 VoltSupplied through the main unit, e.g. a radio. Alimentation par l`appareil principal.
Speisung durch anderen Apparat, z.B. bei Vorsatzgeräten durch das Radio.
Loudspeaker/pwr.out
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)Electro magnetic dynamic loudspeaker (moving-coil principle by Rice-Kellog) with field excitation coil - mostly used as choke.
Haut parleur dynamique avec bobine d`excitation - plus souvent aussi utilisé pour le self.
Elektrodynamischer Lautsprecher mit Erregerspule für das Magnetfeld (Fremderregung), meist gleichzeitig als Siebglied dienend.
/ 2.5 W
www.radiomuseum.org
Model: P.C.R. (PCR)
Material
Metal caseMetal case.
Caisse en métal.
Gerät, dessen Gehäuse aus Metall gefertigt ist. Es kann sich um verschiedenartige Metalle und Oberflächenbearbeitungen handeln. Ist es hingegen nur ein Chassis, so erhält das Gerät eine andere Bezeichnung.
Shape
Tablemodel, low profile (big size).
Dimensions (WHD)
17 x 10 x 8 inch / 432 x 254 x 203 mm
Valves / Tubes
6:
EF39
(more
for members)
Notes
Communication receiver intended for information of troops and civilians in Operation Overlord and later for Troop entertainment.
Several variants (see separate model entries):
PCR1 / ZA26707: original model, internal speaker, output tube EL32/VT52, set constructed using many parts from WS22, fits in WS19 cabinet.
PCR2 / ZA27718: no internal speaker, shortwave coverage 6-22 MHz.
PCR3 / ZA26939: no internal speaker, longwaves omitted, two shortwave ranges 2.3-7.3 and 7-23 MHz.
PCR3 Mk1/1: ZA36009
PCR3 Mk1/2 / PCR3 TPL: ZA30607.
Collectors prices
1 Collector price
(for members)
Mentioned in
Wireless for the Warrior Vol.3
Literature/Schematics
-- SchematicEin Mitglied hat dieses Modell auf Grund eines Schaltplanes gemeldet.
This model was suggested by Anonymous 38 Collector.
EbayDE Item: 6269761806 user os zillator0
EbayDE Item: 6269761806 user os zillator0
EbayDE Item: 6269761806 user os zillator0
More pictures
Further information on
P.C.R. (PCR) (Pye Ltd., Radio Works; Cambridge)

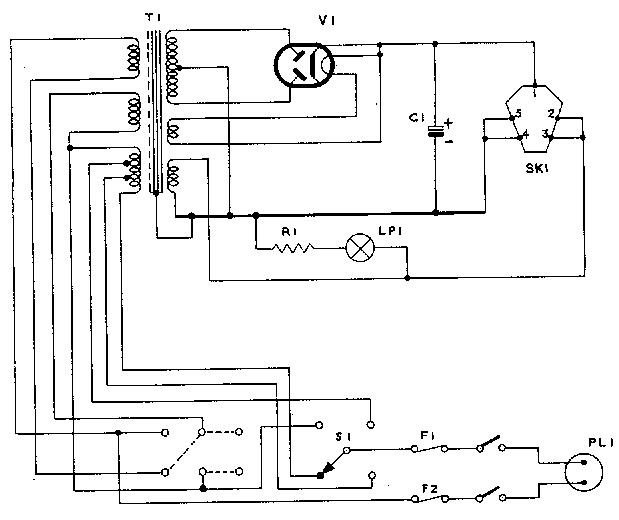

Il ricevitore PCR presente in archivio è difforme da uno analogo acquistato tramite eBay. Infatti, quello in archivio risulta comprensivo del sistema di alimentazione. Dalla documentazione che allego risulta che le versioni del ricevitore sono quattro: PCR, PCR1, PCR2 e PCR3. Tutte sono alimentate tramite appositi alimentatori separati dal ricevitore collegati tramite una connessione volante. La nota che allego mostra quanto detto. L'esemplare in oggetto è stato ripristinato mediante la sostituzione del condensatore C24 riportato in figura 1. Solo il primo PCR ha l'altoparlante incorporato, le versioni successive ne sono sprovviste. Dalle date riportate su alcuni componenti presenti all'interno del ricevitore si può affermare che la serie P.C.R. è stata prodotta dal 1944 in poi.
