• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1927 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164320

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

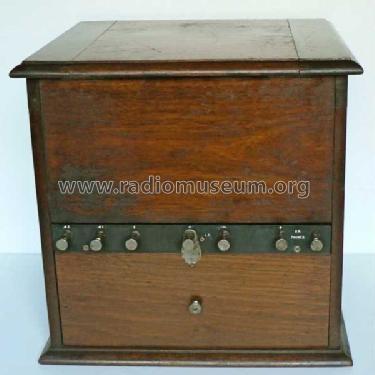

• Model: Two Valve Set 720 - Pye Ltd., Radio Works;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes
• can be fitted with 2, 4 or 6 volt tubes automatic grid bias.

• Author
• Model page created by Richard Allan. See "Data change" for further contributors.
