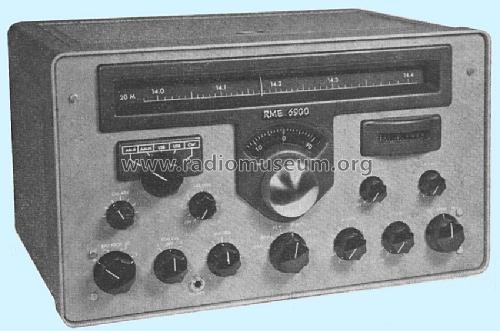

RME-6900
ID = 116323
 |
 |
 |
 |
 |
 |
 |

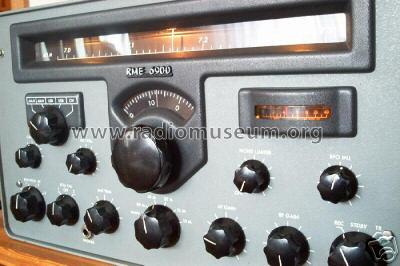

Radio Mfg. Engineers: RME-6900 [Amateur-R] ID = 324845 400x266
|
|
||||
| Year: 1959–1962 | Type: Amateur-Receiver | ||||
| Valves / Tubes | 12: 6BA6 6U8A 6U8A 6C4 6BA6 6BA6 6T8 12AT7 6AL5 6AQ5A 6CB6 0B2 |
|---|
| Principle | Superhet, double/triple conversion; IF-Freq 57/2195 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 11 AM circuit(s) |
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 117 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | 1 W |
| from Radiomuseum.org | Model: RME-6900 - Radio Mfg. Engineers, Inc. RME |
| Material | Metal case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 432 x 248 x 308 mm / 17 x 9.8 x 12.1 inch |
| Notes | Amateur bands 80, 40, 20, 15, 10 m plus 10.0 - 11.0 MHz band. S-meter. 3.6 kHz (AM), 2.0 kHz (SSB) and 500 Hz (CW) selectivity. T-notch, 100 kHz calibrator. 2× 1N1763 power rectifiers. Optional 6901 external speaker. Moore notes 349 USD. |
| Net weight (2.2 lb = 1 kg) | 15.9 kg / 35 lb 0.4 oz (35.022 lb) |
| Price in first year of sale | 369 USD |
| Collectors' prices | 2 Collector prices (for members Radiomuseum.org) |
| Source of data | Communication Receivers / |
| Mentioned in | Shortwave Receivers - Past & Present; Fred Osterman, N8EKU |
| Literature/Schematics (1) | - - Manufacturers Literature |
Model page created by Götz Linss. See "Data change" for further contributors.
