• Country
• France

• Manufacturer / Brand
• Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 235445

• • alternative name: LL || Radio LL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• A441 A435 A435 A415 B443

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 50 & 60 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Super-Rallye No. 4 [1929] - Radio L.L. Lucien Levy, LL

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 550 x 400 x 210 mm / 21.7 x 15.7 x 8.3 inch

• Notes

• Réception des ondes de 230 à 1800 m. Cadre extra-plat dans le couvercle. Prise pour pick-up.

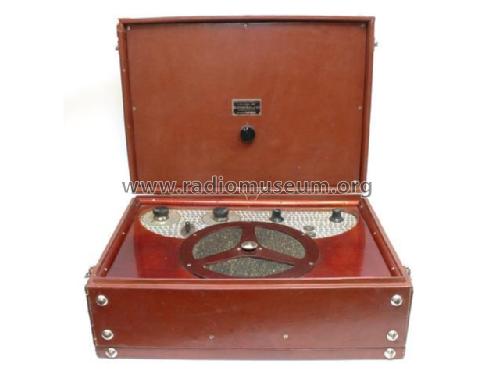

  Valise en cuir.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Price in first year of sale
• 4,500.00 FRF

• Literature/Schematics (1)
• -- Original prospect or advert (L'Ami du people du soir, 17.05.1929)

• Literature/Schematics (2)
• L'Ami du people du soir, 26.05.1929 / description
