Realistic DX-343 20-218

Realistic DX-343 20-218; Radio Shack Tandy, (ID = 1792861) Radio Realistic DX-343 20-218; Radio Shack Tandy, (ID = 1792862) Radio
Realistic DX-343 20-218; Radio Shack Tandy, (ID = 1792863) Radio
Use red slider bar for more.

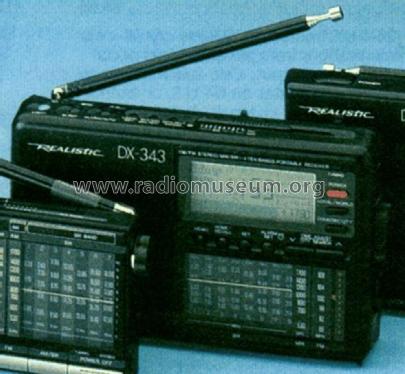

Realistic DX-343 20-218; Radio Shack Tandy, (ID = 1792861) Radio
Radio Shack Tandy,: Realistic DX-343 20-218 [Radio] ID = 1792861 1400x1295
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic DX-343 20-218, Radio Shack (Tandy, Realistic); USA:
By courtesy of RadioShackCatalogs.com - See all the catalogs from 1939 to (almost) today at .RadioShackCatalogs.com. This picture is from 1993, page 30.

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic); USA
Year: 1993 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast, more than 2 SW bands plus FM.
Details
Power type and voltage Dry Batteries / Either Batteries: "AA" 4 x 1.5V or DC: 12V or AC: 60 cycles, 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Realistic DX-343 20-218 - Radio Shack Tandy, Realistic;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 176 x 105 x 39 mm / 6.9 x 4.1 x 1.5 inch
Notes nine shortwave bands from 49 - 11 m, analog tuning, digital world traveller clock
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Price in first year of sale 89.95 $
Source of data -- Collector info (Sammler)
Literature/Schematics (4) Radio Shack Catalog (1993, page 30.)

Model page created by Martin Bösch. See "Data change" for further contributors.
