• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82234

• • Brand: Radiobell

Click on the schematic thumbnail to request the schematic as a free document.

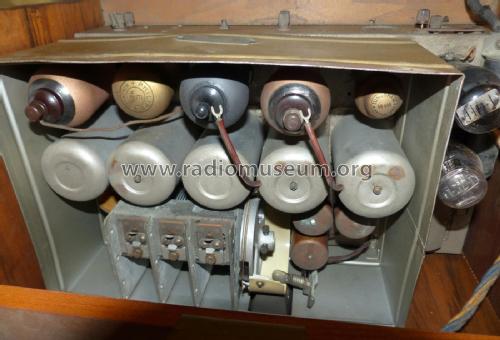

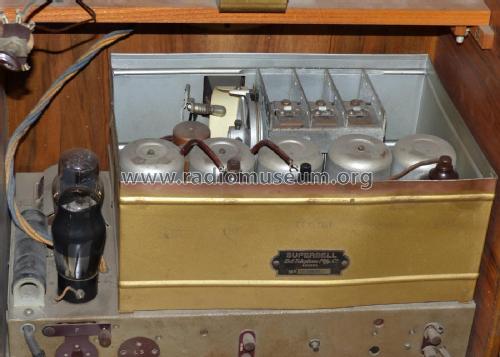

• Number of Tubes
• 7

• Valves / Tubes
• E455 E455 E445 E424 E453 E424 1561

• Main principle
• Superheterodyne (common); ZF/IF 135 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Bell 7 [AC] - Bell Telephone Mfg. Co.

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 440 x 570 x 300 mm / 17.3 x 22.4 x 11.8 inch

• Notes
• Collector info tubes: E455 E428 RENS1264 E445 AG495 APP4120 G470
  Manuel de la Radio tubes: E455 K452TB K445 K424 E424 E453 1561

  Serial number 30835 was in the test process in Feb. 1933 in Anvers.
  2 Wave-bands. Switch on the side.
  See also Bell 50 variants with nearly the same case (no switch on the side and only 5 tubes (TRF)).

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Manuel de la Radio 1940, van Cortenberghe

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
