• Year
  • 1966/1967
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 111516
    • Brand: SFER

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 6 × 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.2 W (unknown quality)
  • from Radiomuseum.org
  • Model: RA7244T - Radiola marque
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 336 x 197 x 98 mm / 13.2 x 7.8 x 3.9 inch

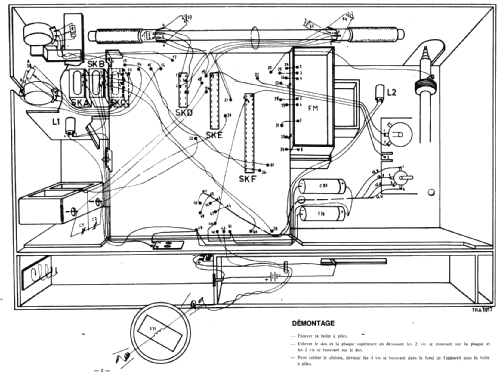

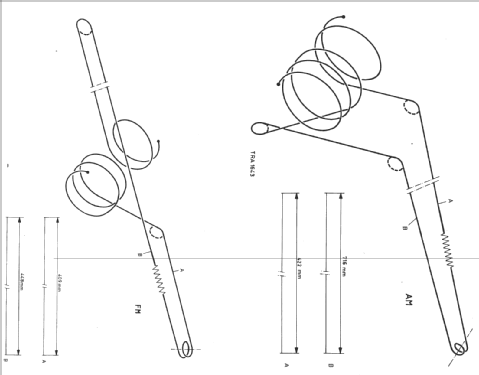

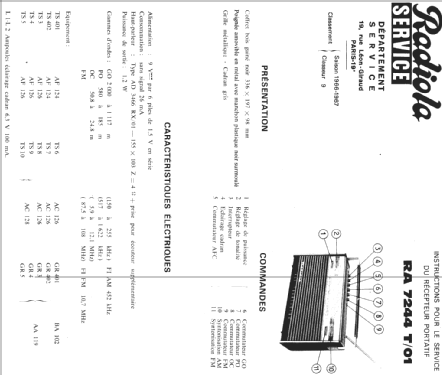

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
