Marine Receiver AR-8506-B

Marine Receiver AR-8506-B; Radiomarine (ID = 1043011) Receiver-C
Marine Receiver AR-8506-B; Radiomarine (ID = 1043004) Receiver-C Marine Receiver AR-8506-B; Radiomarine (ID = 1043006) Receiver-C
Marine Receiver AR-8506-B; Radiomarine (ID = 1043007) Receiver-C Marine Receiver AR-8506-B; Radiomarine (ID = 1442867) Receiver-C
Marine Receiver AR-8506-B; Radiomarine (ID = 1442869) Receiver-C Marine Receiver AR-8506-B; Radiomarine (ID = 1442871) Receiver-C
Marine Receiver AR-8506-B; Radiomarine (ID = 1442872) Receiver-C
Use red slider bar for more.
Marine Receiver AR-8506-B; Radiomarine (ID = 1043004) Receiver-C

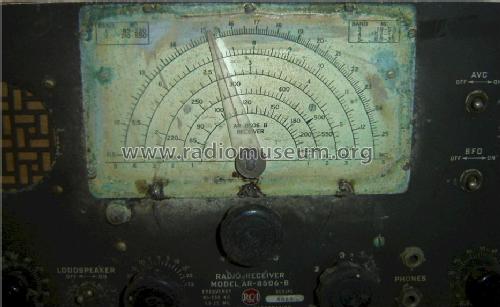

Radiomarine: Marine Receiver AR-8506-B [Receiver-C] ID = 1043004 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marine Receiver AR-8506-B, Radiomarine Corporation of America, New York

Country:  United States of America (USA)
Manufacturer / Brand:  Radiomarine Corporation of America, New York
alternative name

RMCA
Year: 1943 ? Type: Communication/Commercial Receiver (also Amateur)
Valves / Tubes 10: 6SG7 6SG7 6J5 6SG7 6SG7 6SG7 6SQ7 25L6GT 6J5 25Z6
Principle Superhet with RF-stage; ZF/IF 1700 kHz; 4 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Marine Receiver AR-8506-B - Radiomarine Corporation of
Material Metal case
Shape Rack
Dimensions (WHD) 480 x 230 x 300 mm / 18.9 x 9.1 x 11.8 inch
Notes Marine Receiver AR-8506-B, modes: AM and CW,
Coverage:
Band 1: 85 - 220 kHz
Band 2: 210 - 550 kHz
Band 3: 1.9 - 5.4 MHz
Band 4: 5.2 - 12 MHz
Band 5: 11.5 - 25 MHz
Used on Liberty ships during World War II.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
