Junior Register 3K-W

• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10476

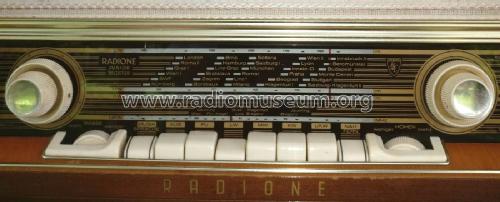

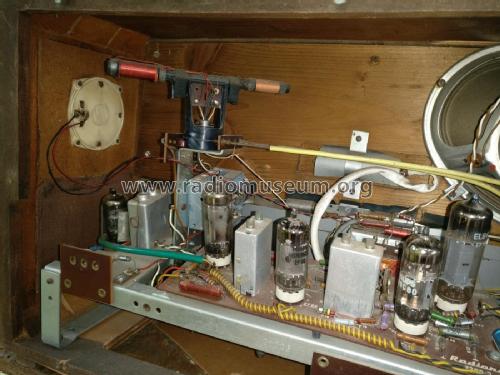

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452/10420 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Junior Register 3K-W - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel with Push Buttons.

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb

• Other Models

• Here you find 520 models, 362 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Radione (RADIO Nikolaus Eltz); Wien
