• Year
  • 1952/1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 119507

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s)
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 150; 185; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

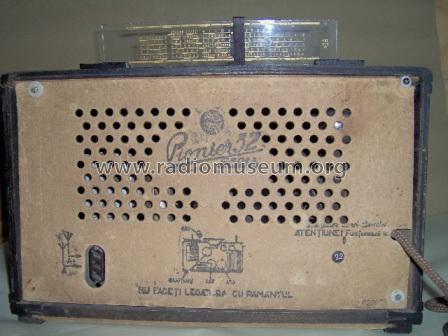

  • Model: Pionier 52 S521A2 - Radio Popular; București -
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 360 x 290 x 170 mm / 14.2 x 11.4 x 6.7 inch
  • Literature/Schematics (1)
  • Scheme de Radioreceptoare vol.1 Ed. Tehnica 1973
  • Author
  • Model page created by Francisc VISKY. See "Data change" for further contributors.
