• Year
  • 1950 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 232579

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

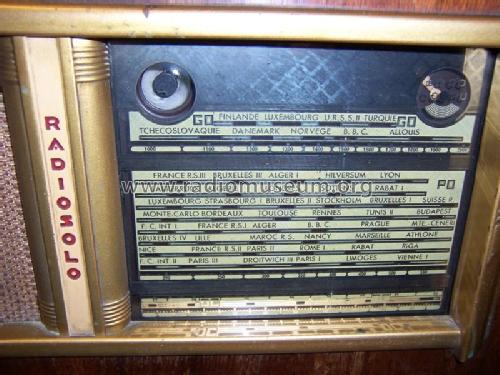

  • Model: Inconnu - Unknown 11 - Radiosolo, Société Lorraine de
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 510 x 290 x 250 mm / 20.1 x 11.4 x 9.8 inch
  • Notes
  • Bloc 3G Omega.

  • Author
  • Model page created by Daniel Jecker. See "Data change" for further contributors.
