• Year
  • 1947 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 127408

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

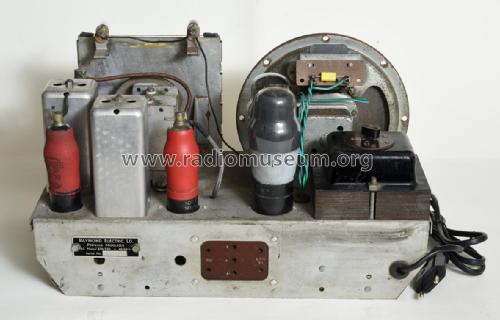

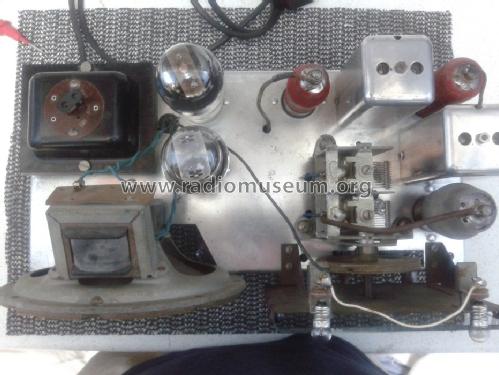

  • Model: F17 - Raymond Electric, London
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 15.75 x 9.75 x 8 inch / 400 x 248 x 203 mm
  • Literature/Schematics (1)
  • -- Schematic (Paul Stennings CD Vol 2)
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Raymond Electric,: F17

Threads: 1 | Posts: 1

This radio was also marketed under the name of Derwent radios with no model number as the sets were rented out by a company called Central Equipment Ltd of Perivale London.

Derek Franks, 03.Feb.14
