7DX21

7DX21; Raytheon Mfg. Co.; (ID = 1543592) Television

7DX21; Raytheon Mfg. Co.; (ID = 1543593) Television

7DX21; Raytheon Mfg. Co.; (ID = 1543594) Television

7DX21; Raytheon Mfg. Co.; (ID = 1543595) Television

7DX21; Raytheon Mfg. Co.; (ID = 1543596) Television

7DX21; Raytheon Mfg. Co.; (ID = 1543597) Television

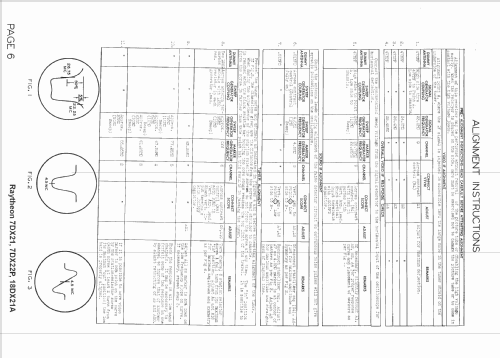

7DX21; Raytheon Mfg. Co.; (ID = 1543598) Television

7DX21; Raytheon Mfg. Co.; (ID = 1543599) Television

7DX21; Raytheon Mfg. Co.; (ID = 1543600) Television

7DX21; Raytheon Mfg. Co.; (ID = 1543601) Television
7DX21; Raytheon Mfg. Co.; (ID = 188531) Television 7DX21; Raytheon Mfg. Co.; (ID = 188529) Television
7DX21; Raytheon Mfg. Co.; (ID = 188528) Television 7DX21; Raytheon Mfg. Co.; (ID = 188530) Television
Use red slider bar for more.
7DX21; Raytheon Mfg. Co.; (ID = 188531) Television
Raytheon Mfg. Co.;: 7DX21 [Television] ID = 188531 465x346
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7DX21, Raytheon Mfg. Co.; Cambridge, USA (also tubes):
EbayCOM tnorthup 6250836942

Country:  United States of America (USA)
Manufacturer / Brand:  Raytheon Mfg. Co.; Cambridge, USA (also tubes)
Year: 1950 ? Type: Television Receiver (TV) or Monitor
Valves / Tubes 18: 6BH6 6J6 6BA6 6BA6 6BA6 6AL5 12AU6 12AU6 19T8 25L6GT 12AU6 12SN7GT 12SN7GT 12SN7GT 50L6GT 50L6GT 1B3GT 7JP4
Principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 7DX21 - Raytheon Mfg. Co.; Cambridge,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17 x 10.5 x 17 inch / 432 x 267 x 432 mm
Notes

Known as Raytheon-Belmont, also as Heatkit Kit TV 7", static deflection tube, 12 channels US-VHF-Tuner.

Channels 2 thru 13

Price in first year of sale 149.00 $
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in Photofact Folder, Howard W. SAMS (81-13 Set 81 Folder 13)

Model page created by a member from A. See "Data change" for further contributors.

All listed radios etc. from Raytheon Mfg. Co.; Cambridge, USA (also tubes)
Here you find 140 models, 122 with images and 58 with schematics for wireless stes etc. French TSF for Télégraphie sans fil.
