• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53100
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Wave bands
  • Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 1.75 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

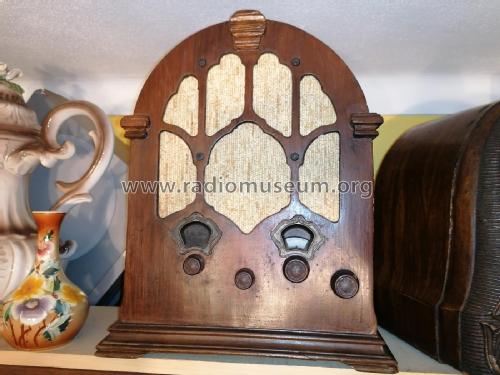

  • Model: 120 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 12.75 x 15.25 x 9.25 inch / 324 x 387 x 235 mm
  • Price in first year of sale
  • 39.95 USD
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 4 = ca. 1934 and before
