• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180108

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6CF6 6BA6 6BA6 6BE6 6EQ7 6AU6A 6AL5 12AX7A 6CL8A 12AX7A 6BQ5 6BQ5

• Main principle

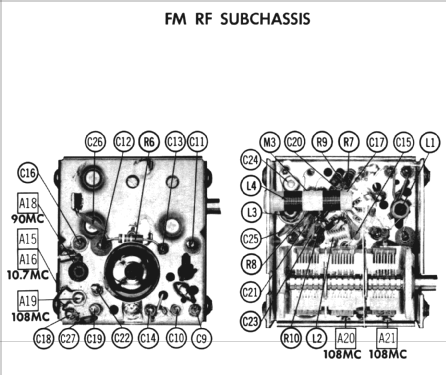

• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Various materials

• from Radiomuseum.org
• Model: 4RC96 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 18.5 x 11.25 x 9.25 inch / 470 x 286 x 235 mm

• Notes

• RCA Victor model 4RC96;
  Speaker for left channel in a separate box.

  The right and left channels each have two speakers.  The larger speaker is 8 inch diameter and the smaller tweeter is 3.5 inch diameter.

  Made in Canada

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 691, Folder 12, Date 4-64)

• Author
• Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
