For model 6T64 "Kingsbury" Ch= KCS47A, RCA (RCA Victor Co. Inc.); New York (NY):
Ebay auction by user ©sokkerrulz 230768157644

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1950/1951 Type: Television Receiver (TV) or Monitor
Valves / Tubes 22: 6CB6 6J6 6AU6 6AU6 6AL5 6AV6 6K6GT 6AU6 6CB6 6AU6 6CB6 6AL5 12AU7 12AU7 6J5 6K6GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 16GP4 or 16GP4A or 16GP4B or 16GP4C
Principle Superhet with RF-stage
Wave bands VHF/UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 3.5 W (max.)
from Radiomuseum.org Model: 6T64 "Kingsbury" Ch= KCS47A - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 23.75 x 36.75 x 19.25 inch / 603 x 933 x 489 mm
Notes

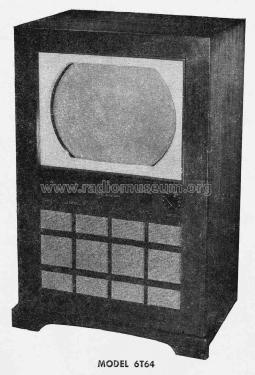

The RCA 6T64 is a 16" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with picture tube 16GP4, 16GP4A, 16GP4B or 16GP4C.  Cabinet color is Mahogany, Walnut or Limed Oak.

Net weight (2.2 lb = 1 kg) 107 lb (107 lb 0 oz) / 48.578 kg

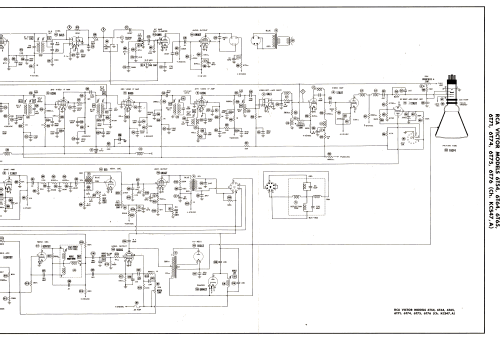

Literature/Schematics (1) RCA Victor Service Notes "Red Book" (RCA Victor Service Data Volume VI 1950 Pages 367-400)
