CT-100 The Merrill Ch= CTC-2

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 83672

• • alternative name: RCA Manufacturing || Victor Talking Machine

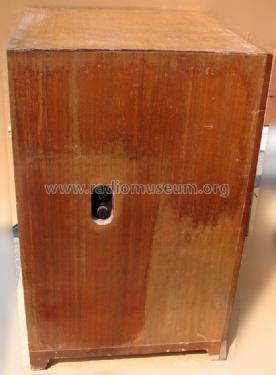

• Picture

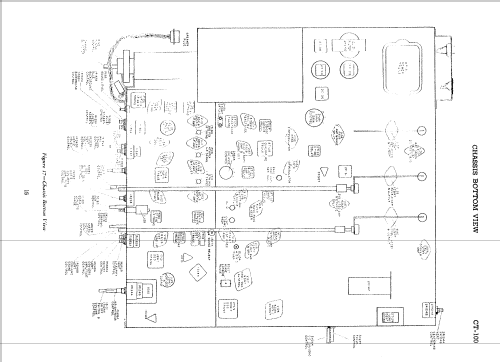

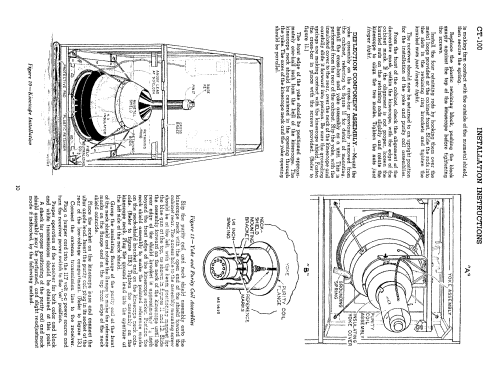

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 36

• Valves / Tubes
• 15GP22

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: CT-100 The Merrill Ch= CTC-2 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 27.5 x 40 x 25 inch / 699 x 1016 x 635 mm

• Notes
• RCA CT-100, The Merill, Ch= CTC-2;
  First RCA NTSC Color TV on the market.
  US standard VHF (and UHF) tuner, 16 preset stations.
  Power consumption 475 Watt. 45° picture tube. IF = 45.75 MHz (video)/ 41.25 MHz (audio).
  5000 sets were produced.
  Erstes zum Verkauf bestimmtes nach dem NTSC-Farbübertragunsstandard arbeitendes RCA Farb-TV-Gerät; VHF- (und UHF)Tuner nach Norm M mit 16 Stationsspeichern;
  Chassisbezeichnung: CTC2; 475 Watt Leistungsaufnahme; 45° Bildröhre; 45,75 MHz Bild-ZF und 41,25 MHz Ton-ZF;
  5000 Stück wurden gefertigt.

• Price in first year of sale
• 1,000.00 $

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
