For model D22-1, RCA (RCA Victor Co. Inc.); New York (NY):
Thanks to ebayer radioarchive

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1935 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 22: 6K7 6L7 6K7 6K7 6E5 6H6 6C5 6C5 6C5 6H6 6K7 6J7 6L7 6C5 6C5 6C5 2A3 2A3 2A3 2A3 5Z3 5Z3
Principle Superhet with RF-stage; ZF/IF 460 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Recording phonogr.-Disc Recorder
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 20 W (unknown quality)
from Radiomuseum.org Model: D22-1 - RCA RCA Victor Co. Inc.; New

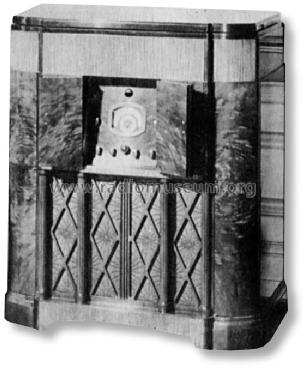

Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 38.125 x 43.25 x 20.25 inch / 968 x 1099 x 514 mm
Notes 5 bands: LW, BC, Police, SW 6-18 MHz, SW 18-60MHz.
Dynamic expander.

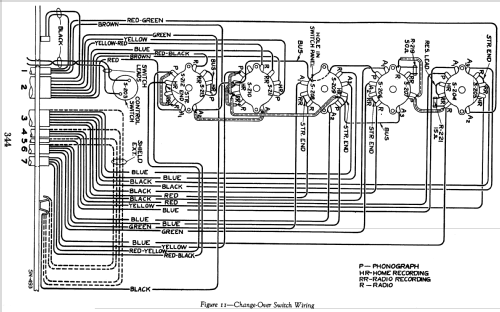

Automatic disc changer and recorder. There are 5 power supply ratings for this model: Rating A6..105-125V, 60 cycles Rating A5..105-125V, 50 cycles Rating B4..105-125V, 40 cycles Rating B3..105-125V, 30 cycles Rating B2..105-125V, 25 cycles
Net weight (2.2 lb = 1 kg) 269 lb (269 lb 0 oz) / 122.126 kg
Price in first year of sale 600.00 USD
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to AR4.Ed.,Bunis, tube
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Guide to old Radios,Johnson 1989
Literature/Schematics (1) Pre-War Consoles; Stein, 2000

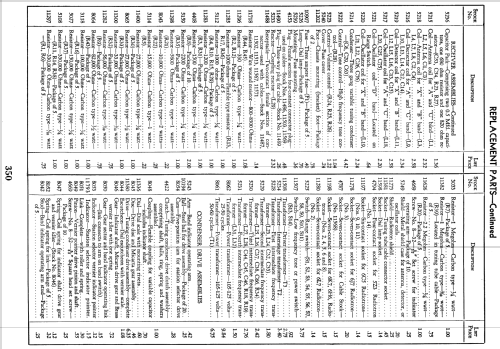

Literature/Schematics (2) RCA Victor Service Notes "Red Book"
