R10; RCA RCA Victor Co. (ID = 972234) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1931 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 235 227 224 235 227 227 247 280
Principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: R10 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Collectors' prices
External source of data Ernst Erb
Source of data The Radio CollectorGrinder, 1995

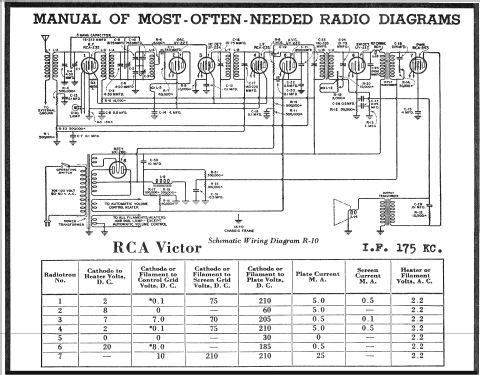

Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Collector's Guide to AR4.Ed.,Bunis, tube
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
