R74 ; RCA RCA Victor Co. (ID = 503140) Radio

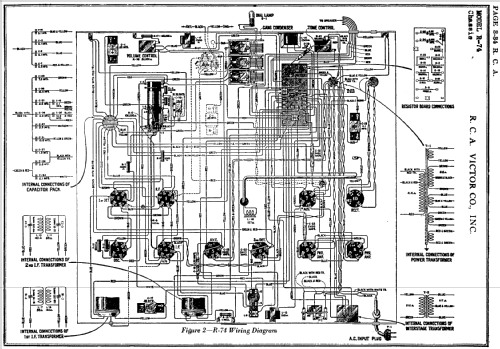

RCA RCA Victor Co.: R74 [Radio] ID = 503140 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model R74, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1932/1933 perfect model Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 58 58 56 58 56 56 46 46 82 56
Principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 7 W (unknown quality)
from Radiomuseum.org Model: R74 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 14.75 x 20 x 11.25 inch / 375 x 508 x 286 mm
Notes

Class B amplification. Information from Alan Douglas for this model: "According to the "Red Book", the RCA service manual 1931/32, this RCA model R-74 had a market introduction June 1932 with a list price of $ 73.75 and it was announced to dealers June 23, 1932 and June 28 1932 the sample shipments to dealers went out and date of stock shipments was June 30, 1932. This model was sold 8140 times."

Stein names two bands!

Net weight (2.2 lb = 1 kg) 44 lb (44 lb 0 oz) / 19.976 kg
Price in first year of sale 73.75 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`sGuide 1921-
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in The Radio CollectorGrinder, 1995
Literature/Schematics (1) Collector's Guide to AR6.Ed. Slusser tube

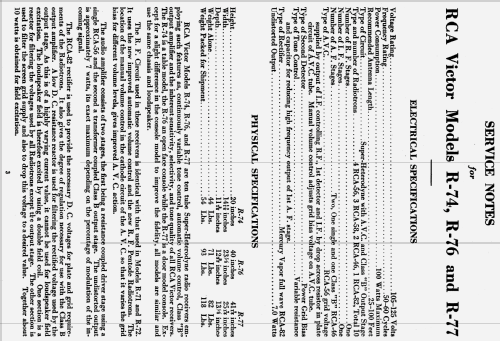

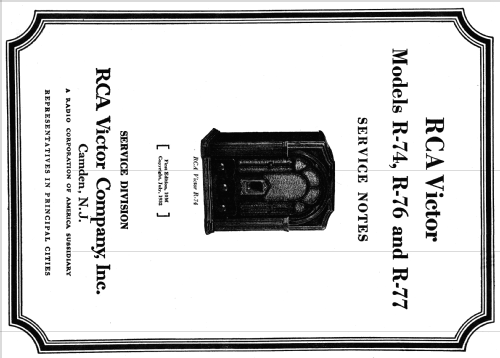

Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series
Literature/Schematics (3) Cathedral & Tombstone Radios; Stein, 2008 (page 222.)
