For model Radiola 67, RCA (RCA Victor Co. Inc.); New York (NY):

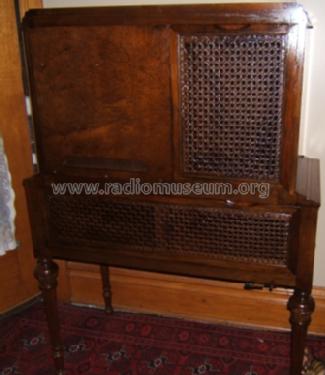

Front View 1: Radiola 67 with Radiola 32 radio and Western Electric era amplifier. Mason City, Iowa

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1929 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 27 27 27 27 27 27 27 50 81 81
Principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / See Notes Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4.6 W (unknown quality)
from Radiomuseum.org Model: Radiola 67 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 40.5 x 56 x 21 inch / 1029 x 1422 x 533 mm
Notes Versions available with the following power supply ratings:
105-125V, 50-60 Cycles
200-250V, 50-60 Cycles
105-125V, 25-40 Cycles
Net weight (2.2 lb = 1 kg) 225 lb 0 oz (225 lb) / 102.150 kg
Price in first year of sale 690.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio CollectorGrinder, 1995
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Radio Manufacturers of the 1920s, Vol 3, Alan Douglas
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
