Model: Radiola II (2) AR800






Antique radios, Old Time Radios

Radiola II (2) AR800
Country:
United States of America (USA)
Manufacturer/Brand:
RCA (RCA Victor Co. Inc.); New York (NY)
Year: 1922 – 1924
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 54625
previous
|
Result List
|
next
|
New search for Radios etc.

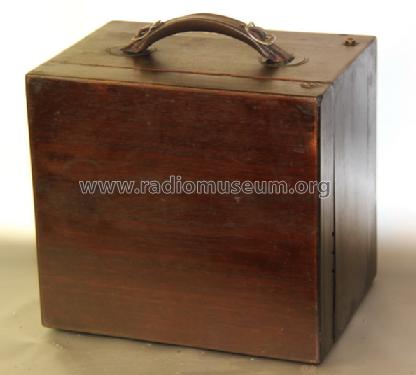

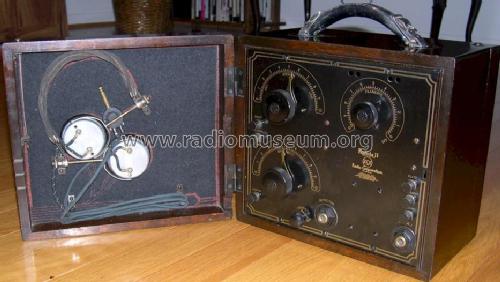

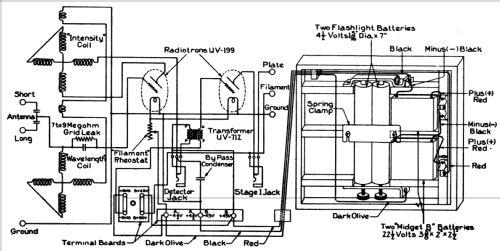

Schematics etc.: 1 (for
members)
Principle
TRF with reaction (regenerative); 1 AF-stage(s)TRF (tuned radio frequency or straight receiver) with manual regenerative (feed-back) control.
Récepteur TSF à amplification directe avec réaction maneuvrable.
Geradeausempfänger mit bedienbarer Rückkopplung, die auch zum Selbstschwingen führen kann. Siehe «Radios von gestern» Seite 59.
Tuned circuits
1 AM circuit(s);
Wave bands
Broadcast only (MW).Mittelwellenempfänger
Power type and voltage
Dry Batteries / 2x22,5 & 2x 4,5 VoltDry battery supply. Alimentation de batterie
Batteriespeisung mit Trockenelementen.
Das Gerät erhält seine Betriebsspannungen von nicht aufladbaren Batterien (Primärzellen).
Solche Geräte wurden auch mit sogenannten Netzanoden gespiesen, die zumindest die Anodenspannung lieferten, in manchen Fällen auch Gittervorspannungen und teilweise auch Heizspannungen.
Loudspeaker/pwr.out
- This set has no built-in loudspeaker (separate or not necessary).This set has no built-in loudspeaker. It requires a separate loudspeaker or headset - or the set has no speaker output (not a radio).
Cet appareil n`a pas d`haut-parleur.
Das Gerät verfügt nicht über einen eingebauten Lautsprecher - entweder weil er nicht nötig ist (Gerät hat keine Tonwiedergabe) oder weil er separat zu stellen ist - bzw. das Gerät ist für Kopfhörerbetrieb.
www.radiomuseum.org
Model: Radiola II (2) AR800
Material
Wooden caseWooden case. Most radios have a wooden cabinet until the WW2. Caisse en bois.
Die meisten Heim-Rundfunkempfänger führen von Beginn an bis etwa Ende 60er Jahre Holz als Gehäuse. Auch frühe Reiseempfänger zeigen Holz (speziell in den 20er Jahren) oder Holz mit Stoffüberzug etc.
Shape
Portable, e.g. Portable Radio (with or without mains > 8 inch).
Dimensions (WHD)
12 x 10 x 8 inch / 305 x 254 x 203 mm
Valves / Tubes
2:
UV199Spezieller Sockel nur für diese Röhre.
(more
for members)
Notes
Made by General Electric. Introduced December 1922, discontinued March 1924.
Price in first year of sale
97
$
Collectors prices
3 Collector prices (for members)
External source of data
Ernst Erb
Source of data
Radio Collector`sGuide 1921-Radio Collector`sGuide 1921-; McMahon, Morgan E.; Vintage Radio, CA90274, USA. (1981)
Circuit diagram reference
Rider's Perpetual, Volume 1The Riders Perpetual contains 23 volumes of schematics. They can be ordered at: Alton H. Bowman, 4172 East Ave, RD 2, Canandaigua, NY 14424-9564, USA.
