Radiola 60; RCA RCA Victor Co. (ID = 55246) Radio
RCA RCA Victor Co.: Radiola 60 [Radio] ID = 55246 933x441
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 60 table, RCA (RCA Victor Co. Inc.); New York (NY):
Original finish on cabinet.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1928 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 27 27 27 27 27 27 27 171A 80
Principle Superhet with RF-stage; ZF/IF 180 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Radiola 60 [table] - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 740 x 270 x 270 mm / 29.1 x 10.6 x 10.6 inch
Notes

This model has two versions, one operating from 50-60 cycle AC power and the other operating from 25-40 cycle AC power.

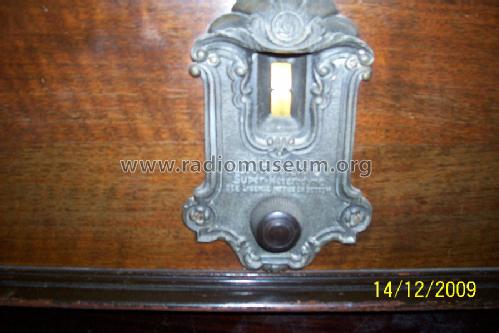

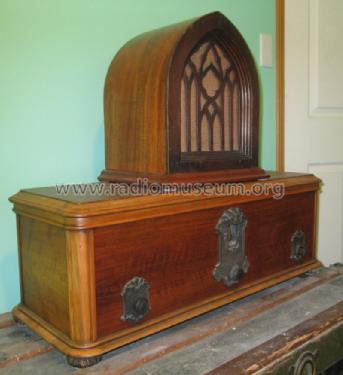

Illuminated single dial. Two-toned walnut veneered table cabinet.

The first IF filter seems to be also primary tuned, but the capacitor as drawn in the schematic is a fixed one, while all other IF circuit caps are adjustable. Insofar it is uncertain whether 6 or 7 tuned circuits can be noted.

Net weight (2.2 lb = 1 kg) 23 kg / 50 lb 10.6 oz (50.661 lb)
Price in first year of sale 147.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio CollectorGrinder, 1995
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to AR4.Ed.,Bunis, tube
Literature/Schematics (1) Radio Manufacturers of the 1920s, Vol 3, Alan Douglas
Literature/Schematics (2) RCA Victor Service Notes "Red Book"
