Globe-Trotter 8BX6 (Globetrotter) Ch= RC-1040D

Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 964341) Radio

Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 964342) Radio

Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 964343) Radio

Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 964344) Radio

Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 964345) Radio
Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 214660) Radio Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 214662) Radio
Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 214665) Radio Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 390959) Radio
Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 989586) Radio Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 989587) Radio
Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 1202621) Radio Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 1346734) Radio
Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 1346735) Radio Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 1346737) Radio
Use red slider bar for more.
Globe-Trotter 8BX6 Ch= RC-1040D; RCA RCA Victor Co. (ID = 214660) Radio

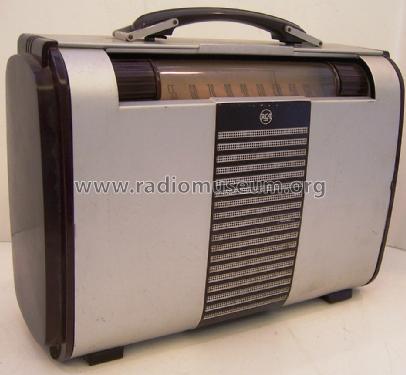

RCA RCA Victor Co.: Globe-Trotter 8BX6 Ch= RC-1040D [Radio] ID = 214660 800x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model Globe-Trotter 8BX6 (Globetrotter) Ch= RC-1040D, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1948/1949 perfect model Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1T4 1R5 1T4 1U5 3V4 117Z3
Principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 117 / 90 & 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Globe-Trotter 8BX6 Ch= RC-1040D - RCA RCA Victor Co. Inc.; New
Material Various materials
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 13.3 x 9.5 x 5.5 inch / 338 x 241 x 140 mm
Notes See also the chassis RC-1040C with an external loop antenna socket, which is omitted in RC-1040D - but otherwise the same. Aluminium front. See also 8BX55 with a gold finish instead aluminium finish, also having chassis RC-1040C or RC-1040D ("Gold" version: only other Back, Link carrying handle, case screws, case shutter). The earlier model 66BX is available with chassis RC-1040, RC-1040A or RC-1040B. Details can be seen at Rider's 20-8 and 20-10 Changes.
External source of data Ernst Erb

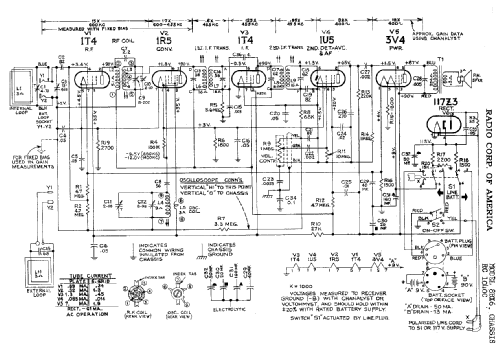

Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Literature/Schematics (1) Rider's Perpetual, Volume 20 = covering 1950

All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
