• Year
  • 1964 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 93118
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

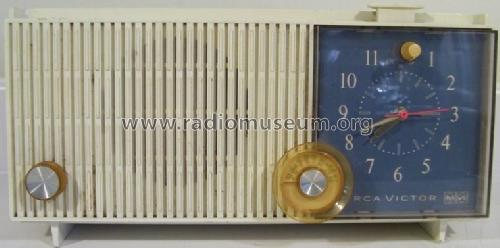

  • Model: RFD 15 V Ch= RC-1213C - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 12.5 x 6 x 4.75 inch / 318 x 152 x 121 mm
  • Net weight (2.2 lb = 1 kg)
  • 3 lb 6 oz (3.375 lb) / 1.532 kg
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 25, 1965
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
