• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1957 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 84593

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 50C5 50C5

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Audio-Amplification

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

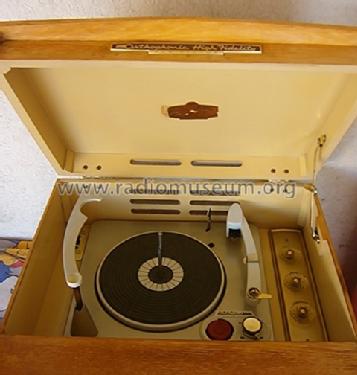

• Model: SHF-8 Ch= RS-158D - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 510 x 700 x 460 mm / 20.1 x 27.6 x 18.1 inch

• Notes
• Push-pull output stage; Selenium Rectifier. 16, 33, 45, 78- RPM record changer. External auxiliary speaker output. Copper electroplated parts.
  Raddrizzatore al selenio. Cambiadischi automatico; velocità: 16, 33, 45, 78 giri. Uscita per speaker supplementare. Meccanica con galvanizzazione in rame.

• Source of data
• - - Data from my own collection

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
