Superette R8; RCA RCA Victor Co. (ID = 647559) Radio
RCA RCA Victor Co.: Superette R8 [Radio] ID = 647559 537x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superette R8, RCA (RCA Victor Co. Inc.); New York (NY):

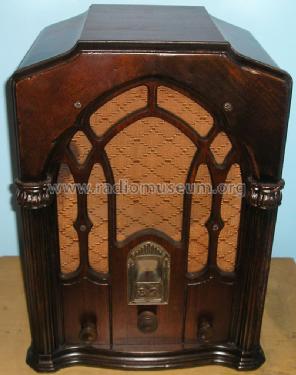

RCA Victor - Superette R8 - front view

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1931 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 35 24 27 35 27 47 80 27
Principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Superette R8 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 13 x 18.5 x 10 inch / 330 x 470 x 254 mm
Notes Except for the dial scale, the chassis used in this model is the same as used in model R-12.
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 59.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`sGuide 1921-

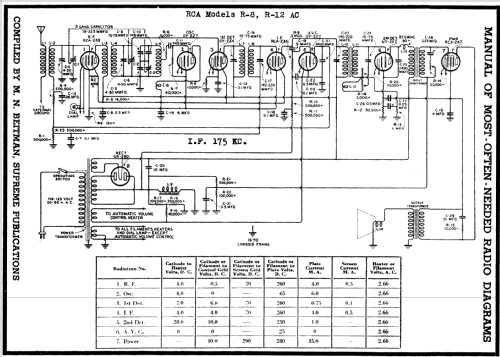

Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Collector's Guide to AR4.Ed.,Bunis, tube

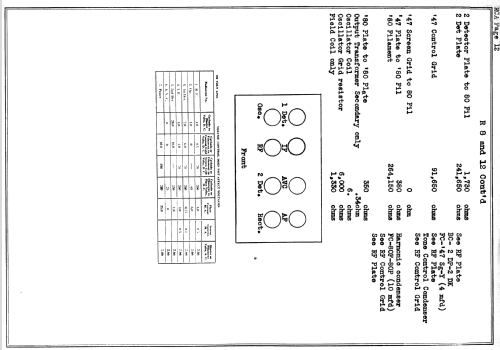

Literature/Schematics (1) RCA Victor Service Notes "Red Book"
Literature/Schematics (2) Cathedral & Tombstone Radios; Stein, 2008 (page 222.)

All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
