• Country
• Italy

• Manufacturer / Brand
• RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)

• Year
• 1971 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 229340

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BC107 BC107 BC107 BC107 BC142 AD142 AD142

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 15 W (20 W max.)

• Material
• Metal case

• from Radiomuseum.org

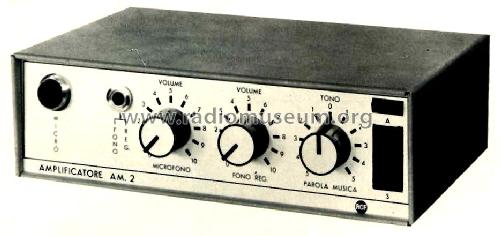

• Model: Amplificatore B.F. AM2 - RCF; Reggio Emilia AEB

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 215 x 180 x 70 mm / 8.5 x 7.1 x 2.8 inch

• Notes

• Amplificateur de sonorisation.

  Distortion harmonique : 3%.

  Bande passante : 150Hz à 15kHz.

  Rapport signal/bruit à 30W : micro -55dB, phono : -60dB.

  Entrées : Micro 60/200Ω, Phono 150KΩ.

  Sorties 8-16Ω.

  Puissance absorbée : 15W (2A).



• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)
