L'Empereur

L'Empereur ; Reela-Radio, Reela- (ID = 261672) Radio L'Empereur ; Reela-Radio, Reela- (ID = 336878) Radio
L'Empereur ; Reela-Radio, Reela- (ID = 337071) Radio L'Empereur ; Reela-Radio, Reela- (ID = 344597) Radio
L'Empereur ; Reela-Radio, Reela- (ID = 344598) Radio L'Empereur ; Reela-Radio, Reela- (ID = 344599) Radio
L'Empereur ; Reela-Radio, Reela- (ID = 344600) Radio L'Empereur ; Reela-Radio, Reela- (ID = 344601) Radio
L'Empereur ; Reela-Radio, Reela- (ID = 344602) Radio L'Empereur ; Reela-Radio, Reela- (ID = 610290) Radio
Use red slider bar for more.
L'Empereur ; Reela-Radio, Reela- (ID = 261672) Radio
Reela-Radio, Reela-: L'Empereur [Radio] ID = 261672 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model L'Empereur, Reela-Radio, Reela-Gees; Paris

Country:  France
Manufacturer / Brand:  Reela-Radio, Reela-Gees; Paris
Year: 1952 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BE6 6BA6 6AU6 6AL5 6AF7 6AQ5 5Y3GB
schematic requested
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: L'Empereur - Reela-Radio, Reela-Gees; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 320 x 200 mm / 22 x 12.6 x 7.9 inch
Notes

5 gammes d'ondes: GO 882 - 1936 m, PO 188 - 575 m, OC 15 - 51 m, BE1 25 et 31 m, BE2 50 m. Contacteur de tonalité 3 positions. Prises pick-up et HP supplémentaire.

Présentation en 2 coloris, vert et macassar. Façade plastique, oreilles lumineuses. Différents façades connus.

Collectors' prices
Mentioned in Le grand livre de la TSF (Doctsf Ref 24906)

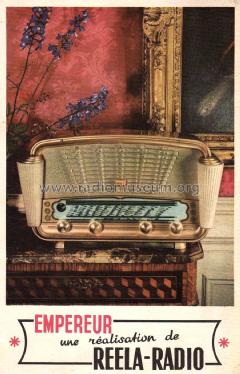

Literature/Schematics (1) -- Original-Prospect

Model page created by Romolo Amazio. See "Data change" for further contributors.

All listed radios etc. from Reela-Radio, Reela-Gees; Paris
Here you find 77 models, 72 with images and 9 with schematics for wireless stes etc. French TSF for Télégraphie sans fil.
