• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23230

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet, single span (BC/MW and LW in 1 band); ZF/IF 1620 kHz; Reflex
  • Tuned circuits
  • 7 AM circuit(s)

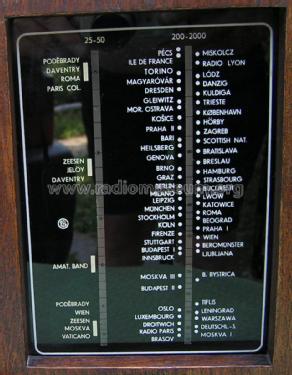

  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 125-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

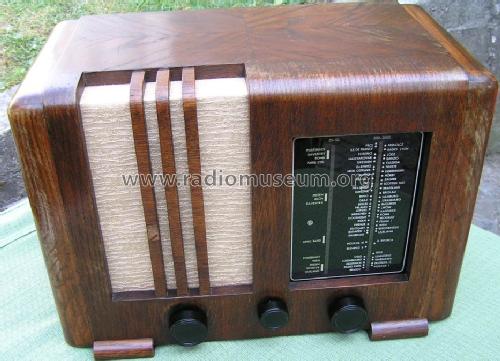

  • Model: 479 - REL, Electrum; Brno
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 490 x 340 x 250 mm / 19.3 x 13.4 x 9.8 inch
  • Notes
  • variable Bandbreite; Reflex-Einbereichssuper
  • Price in first year of sale
  • 1,390.00 Kc
  • External source of data
  • Erb
