Strelasund RR1022

Strelasund RR1022; Robotron Vertrieb (ID = 61526) Radio

Strelasund RR1022; Robotron Vertrieb (ID = 585591) Radio
Strelasund RR1022; Robotron Vertrieb (ID = 251897) Radio Strelasund RR1022; Robotron Vertrieb (ID = 251898) Radio
Strelasund RR1022; Robotron Vertrieb (ID = 251939) Radio Strelasund RR1022; Robotron Vertrieb (ID = 303216) Radio
Strelasund RR1022; Robotron Vertrieb (ID = 719603) Radio Strelasund RR1022; Robotron Vertrieb (ID = 719605) Radio
Strelasund RR1022; Robotron Vertrieb (ID = 719607) Radio Strelasund RR1022; Robotron Vertrieb (ID = 719611) Radio
Strelasund RR1022; Robotron Vertrieb (ID = 719612) Radio Strelasund RR1022; Robotron Vertrieb (ID = 1013192) Radio
Use red slider bar for more.
Strelasund RR1022; Robotron Vertrieb (ID = 251897) Radio
Robotron Vertrieb: Strelasund RR1022 [Radio] ID = 251897 933x700
Select picture or schematic to display from thumbnails on the right and click for download.

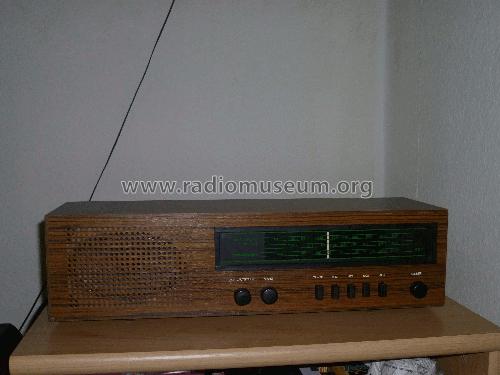

For model Strelasund RR1022, Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)

Country:  Germany
Manufacturer / Brand:  Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: SF235 SF235 SF225 SC239 A281D A210K
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Strelasund RR1022 - Robotron Vertrieb Berlin /
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 485 x 123 x 140 mm / 19.1 x 4.8 x 5.5 inch
Price in first year of sale 395.00 Mark
Collectors' prices
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

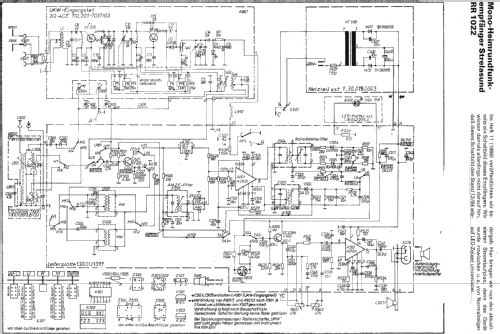

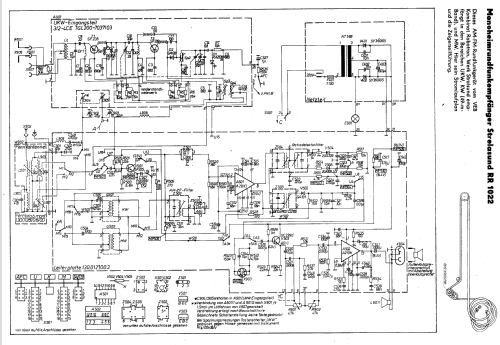

Mentioned in -- Schematic (Sortimentskatalog Elektroakustik (DDR, 1987))

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)
Here you find 13 models, 13 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
