• Country
• Great Britain (UK)

• Manufacturer / Brand
• Romac Radio Corporation, Ltd.; London

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134282

• • alternative name: Romac USA

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1S5 1S4

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1,5 & 67,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org

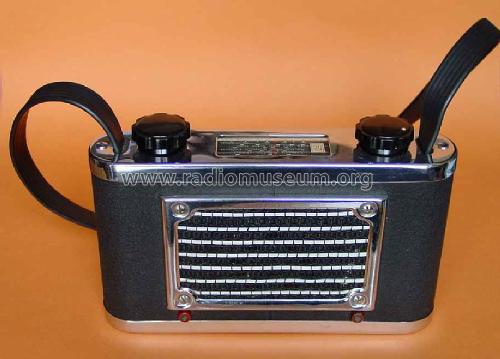

• Model: Personal 126 - Romac Radio Corporation, Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 150 x 57 mm / 9.4 x 5.9 x 2.2 inch

• Notes
• Successor of Model 106. Knobs are spring fitted. Small difference to otherwise similar Model 106.
  External aerial and earth socket.
  Same case for 106(1946), 126(1947), 136L(1948), 136S(1948), 236L(1949) and 236S(1949).

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• "Traders" Service Sheet 940

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
