• Country
• Germany

• Manufacturer / Brand
• Rosita, Theo Schmitz GmbH (Audion); Paderborn

• Year
• 1974/1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115891

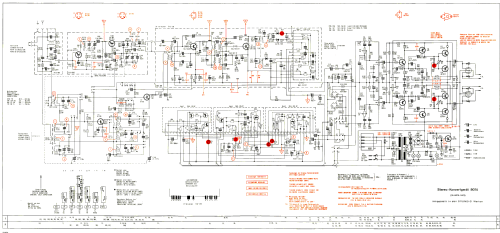

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

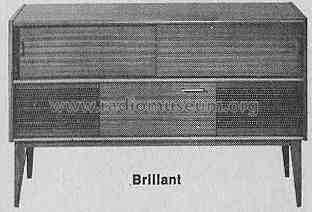

• Model: Brillant Ch= 8074 - Rosita, Theo Schmitz GmbH

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1240 x 730 x 400 mm / 48.8 x 28.7 x 15.7 inch

• Notes
• Rundfunk-Chassis = Grundig 8074, Stereo-NF-Verstärker mit 2 Endstufen je 4 W (Sinus);
  Phono-Chassis = Philips GC051 oder Dual 1220.

• Net weight (2.2 lb = 1 kg)
• 43 kg / 94 lb 11.4 oz (94.714 lb)

• Source of data
• Handbuch VDRG 1974/1975

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
