- Country
- Germany
- Manufacturer / Brand
- Rosita, Theo Schmitz GmbH (Audion); Paderborn
- Year
- 1976 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110546
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

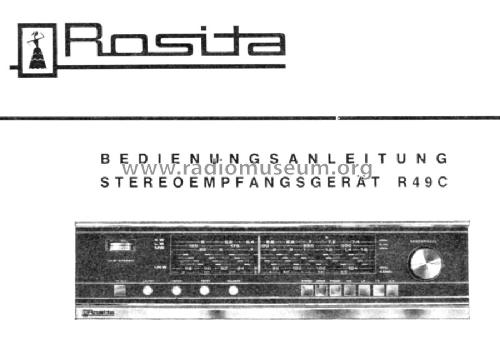

- Model: R49C - Rosita, Theo Schmitz GmbH
- Shape
- Book-shelf unit.
- Notes
- Stereo-Steuergerät; Keramikfilter 10,7 MHz, NF-Verstärker mit integrierten Schaltungen TBA800, Stereo-Dekoder mit IC 758, Phono und Tonbandanschluss, NF-Ausgangsleistung 2 × 7 Watt. 1976?
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Peter Lokowand. See "Data change" for further contributors.
