Model: 400 Automatic 9T
Antique radios, Old Time Radios
400 Automatic 9T
Country:
Germany
Manufacturer/Brand:
SABA; Villingen
Year: 1958 / 1959
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 75572
previous
|
Result List
|
next
|
New search for Radios etc.
schematic requested
Schematics etc.: 0 (for
members)
Principle
Super-Heterodyne (Super in general); IF-Freq. 460 kHzSuperhet - normally without a preamplification stage (as far as known). Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne. Normalement sans préamplification de HF.
Superhet ohne Vorstufe.
Nicht immer war bei der Erfassung klar, ob der Empfänger eine Vorstufe aufweist oder nicht. Im Zweifelsfall kam das Gerät in diese Kategorie.
Tuned circuits
10 AM circuit(s);
Wave bands
Broadcast, Long Wave, Short Wave plus FM.AM (long-, medium- and short waves) and FM (VHF). GO, PO, OC et MF (onde ultra-courte, bande FM).
LW, MW, KW und UKW
Wahrscheinlich sind keine Bänder unterteilt. Bei älteren europäischen Geräten ist der UKW-Bereich noch nicht bis auf 108 MHz erweitert (87,5 oder 88 bis 100 oder bis 104).
Specialities
Radio Control (+Remote Contr.)
Power type and voltage
Alternating Current supply (AC) / 110, 220 VoltAC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Normalerweise sind diese Geräte mit einem Trafo mit Primär- und Sekundärwicklungen versehen. Dadurch führt das Chassis kein gefährliches Potential.
Loudspeaker/pwr.out
4 Loudspeakers4 built-in loudspeakers of any principle.
4 haut-parleurs.
4 Lautsprecher, meist permanentdynamisch. Mischformen sind möglich - z.B. für Hochtöner. Diese Daten finden Sie eventuell in den Bemerkungen zum Gerät.
/ Ø 24.1 cm = 9.5 inch
www.radiomuseum.org
Model: 400 Automatic 9T
Material
Wooden caseWooden case. Most radios have a wooden cabinet until the WW2. Caisse en bois.
Die meisten Heim-Rundfunkempfänger führen von Beginn an bis etwa Ende 60er Jahre Holz als Gehäuse. Auch frühe Reiseempfänger zeigen Holz (speziell in den 20er Jahren) oder Holz mit Stoffüberzug etc.
Shape
Tablemodel with Push Buttons.
Dimensions (WHD)
700 x 445 x 310 mm / 27.6 x 17.5 x 12.2 inch
Valves / Tubes
12:
EC92= 1/2 ECC81 / 12AT7
(more
for members)
Notes
2 Diodes: RL232, Power rectifier: B250C150; Motor-Control; Remote control by cable. This is the export version of the "Freiburg Automatic 9". We believe that there are only minimal changes, like FM up to 108 MHz, dial scale, name on dial glass, power supply. (Remember this if you use the "Freiburg Automatic 9" schematic.)
Collectors prices
1 Collector price
(for members)
External source of data
Karl Schmitz, USA
Literature/Schematics
SAMS Photofact Folder 12, Set 468 (1959 December)
This model was suggested by Ernst Erb.
1958/59 SABA Automatic 400 9T -- front view, power on
1958/59 SABA 400 Automatic 9T -- interior view
1958/59 SABA 400 Automatic 9T -- back cover view
More pictures
Further information on
400 Automatic 9T (SABA; Villingen)

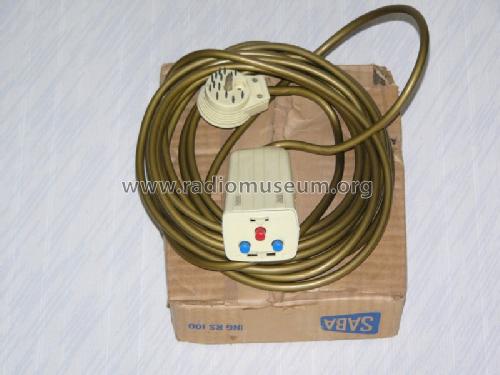

The SABA 400 Automatic 9T is the export "fraternal twin" model of the Freiburg Automatic 9. The original carton has "Freiburg Automatic 9" printed on it, plus a factory-added sticker that says, "400 Automatic 9T". I am certain this is from the 1958/59 model year. The gentleman I purchased it from (eBay $1,225 U.S.) last month (Dec. 2004), bought it from the original owner, about 7-8 years ago. The corded remote was still in the factory-sealed box! He couldn't resist temptation, and took it out of the box a few years ago, to see just how it worked. As you'd expect, the FM dial goes to 108 MHz, and it is powered for 110v, though can be adjusted to accommodate 220v. It is virtually identical to the Freiburg 9, except for the FM dial range, and "400 Automatic" name on the dial glass. The back cover also has a factory-added sticker over the "Freiburg Automatic 9" model name, identifying this set as the export model "400 Automatic 9T". As I mentioned, earlier, it came with the original packing materials and carton, the remote with its original box, advertising brochure, embossed gold SABA hanging tag, spare bulbs, fuses, etc. I was surprised to find there was not a schematic for this set, though I have since received the technical service manual from Walter Groer, for the Freiburg Automatic 9 model. It has to be very similar. The set is all original, and is currently at Antique Radio Restoration & Repair, in Pomfret Center, CT, for a full electronic restoration. Bob Eslinger owns A.R.R.R. (www.oldradiodoc.com), and has done quality work on several sets for me, previously, including the Grundig 5040W/3D I posted a photo of at RMorg. I expect to get the SABA back in the May/June 2005 time period.
