S-460WK 460WK

S-460WK 460WK; SABA; Villingen (ID = 354076) Radio S-460WK 460WK; SABA; Villingen (ID = 354077) Radio
S-460WK 460WK; SABA; Villingen (ID = 354079) Radio S-460WK 460WK; SABA; Villingen (ID = 866290) Radio
S-460WK 460WK; SABA; Villingen (ID = 866291) Radio
Use red slider bar for more.
S-460WK 460WK; SABA; Villingen (ID = 354076) Radio

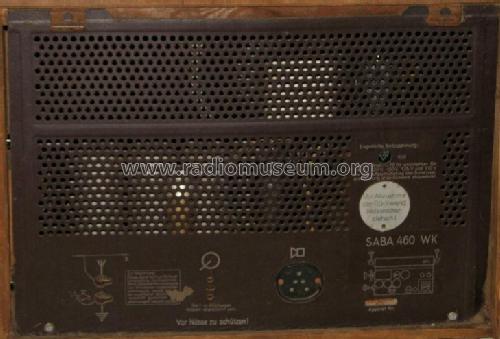

SABA; Villingen: S-460WK 460WK [Radio] ID = 354076 684x539
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-460WK 460WK, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1940–1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 487 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: S-460WK 460WK - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 385 x 295 mm / 20.9 x 15.2 x 11.6 inch
Notes Export;Ch=457;Geh.=357 Wellenbereiche: Lang 150 - 400 kHz, Mittel 510 - 1500 kHz, Kurz 30 - 92m, Kurz 13,5 - 34 m
Net weight (2.2 lb = 1 kg) 15.4 kg / 33 lb 14.7 oz (33.921 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Anzeige in Radio Helios Nr. 20/1940
