• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20380

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• EC92 EC92 ECH81 EF89 EM71 EB91 EABC80 EBF80 ECL80 ECC83 EL84 EL84

• Number of Transistors

• Semiconductors
• E25C2 B250C150

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 11 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Baden Automatic 6-3D [PW] - SABA; Villingen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1596 x 890 x 495 mm / 62.8 x 35 x 19.5 inch

• Notes

• Rundfunk-Chassis ähnlich Freiburg Automatic 6-3D

  Phono-Chassis = Dual 1003
  Abgleich (auch Steuerfilter)
  Alignment (also automatic filter)

  Anschluss für Saba Fernsteuerteil M/F.

• Net weight (2.2 lb = 1 kg)
• 100 kg / 220 lb 4.2 oz (220.264 lb)

• Price in first year of sale
• 1,998.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Mentioned in

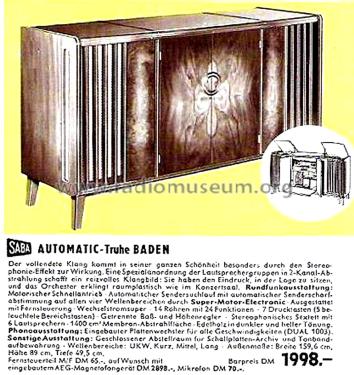

• - - Manufacturers Literature (Saba Katalog (wohl 1955/56))

• Literature/Schematics (1)
• -- Original-techn. papers. (Technische Daten)

• Literature/Schematics (2)
• Katalog Thiele,Helmstedt 1955/56 (Rundfunk-Phono-Fernseh-Katalog S.83)
