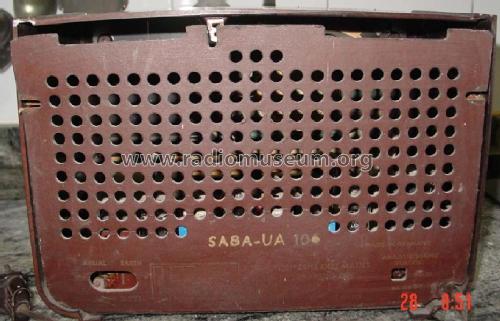

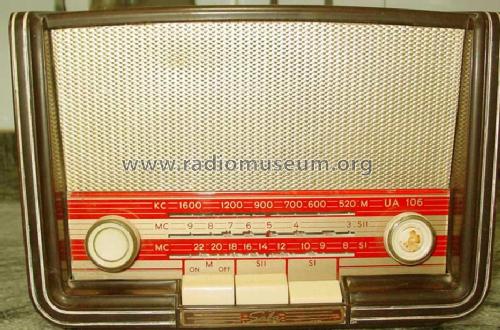

UA106; SABA; Villingen (ID = 416300) Radio UA106; SABA; Villingen (ID = 420267) Radio
UA106; SABA; Villingen (ID = 1198480) Radio UA106; SABA; Villingen (ID = 1198483) Radio
UA106; SABA; Villingen (ID = 1198485) Radio UA106; SABA; Villingen (ID = 1198487) Radio
UA106; SABA; Villingen (ID = 1223775) Radio UA106; SABA; Villingen (ID = 1223776) Radio
UA106; SABA; Villingen (ID = 1223778) Radio UA106; SABA; Villingen (ID = 1223779) Radio
Use red slider bar for more.
UA106; SABA; Villingen (ID = 416300) Radio
SABA; Villingen: UA106 [Radio] ID = 416300 624x440
Select picture or schematic to display from thumbnails on the right and click for download.
For model UA106, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1956 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF89 UCL82 UY85
schematic requested
Main principle Super-Heterodyne (Super in general); Export model
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 117/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: UA106 - SABA; Villingen
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 300 x 207 x 175 mm / 11.8 x 8.1 x 6.9 inch
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Collectors' prices

Model page created by Leonardo Ruz. See "Data change" for further contributors.
