• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk (bis 1945) ESWE

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6444

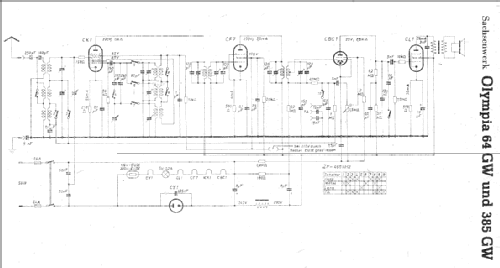

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CK1 CF7 CBC1 CL1 CY1 EUIX or EUX

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

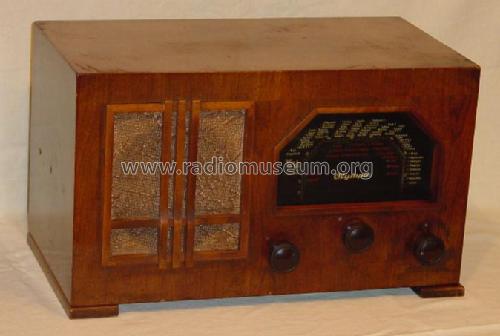

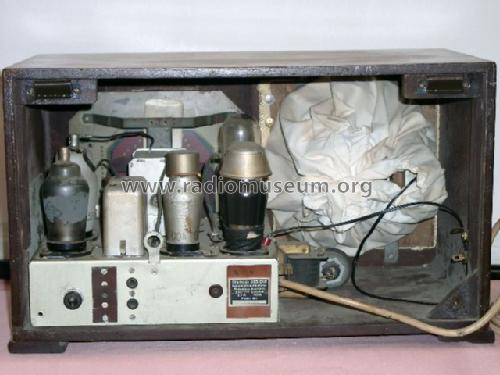

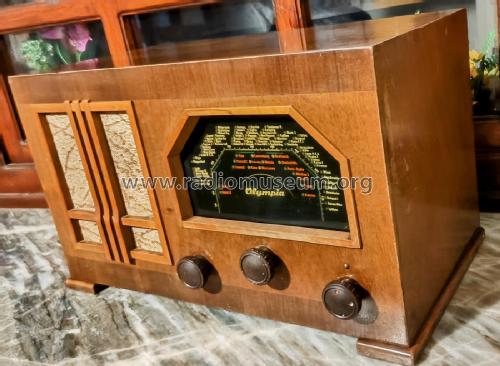

• Model: Olympia 385GW - Sachsenwerk bis 1945 ESWE

• Shape
• Tablemodel, low profile (big size).

• Notes
• Ch=64GW,aber S gibt CL4!

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk
