Olympia-Super 54(W)

Sachsenwerk (bis 1945) ESWE

  • Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 6429

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Olympia-Super 54 - Sachsenwerk bis 1945 ESWE
  • Shape

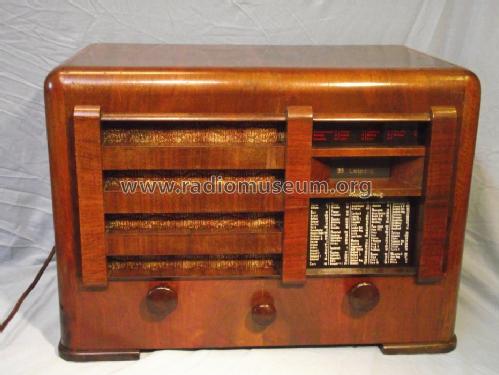

  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 489 x 345 x 290 mm / 19.3 x 13.6 x 11.4 inch
  • Notes

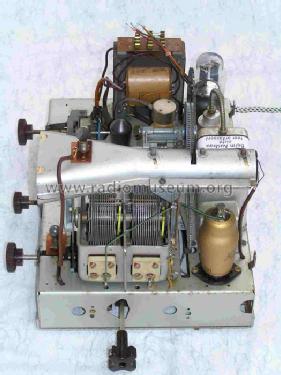

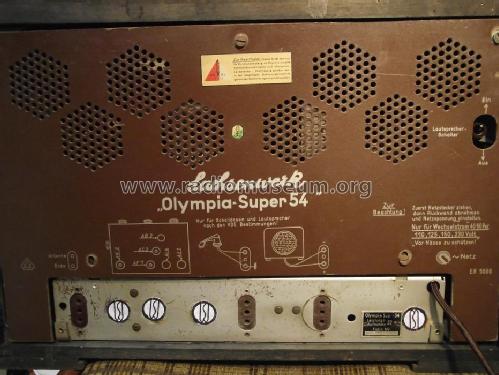

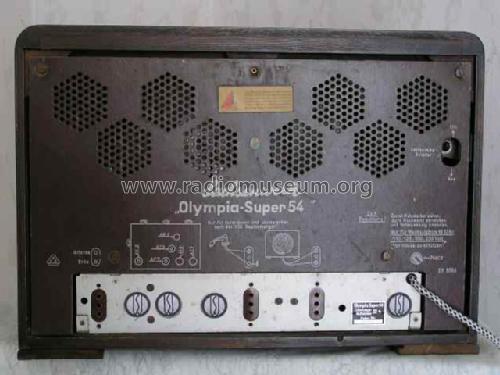

  • Kinoskala. Rückwand und Typschild sind bezeichnet mit "Olympia-Super 54"

    Das Modell wurde auch in Frankreich als Eswé-Super 54 angeboten.

  • Net weight (2.2 lb = 1 kg)
  • 15.8 kg / 34 lb 12.8 oz (34.802 lb)
  • Price in first year of sale
  • 275.00 RM
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
