ATS-803A

ATS-803A; Sangean; Chung Ho (ID = 110135) Radio ATS-803A; Sangean; Chung Ho (ID = 695768) Radio
ATS-803A; Sangean; Chung Ho (ID = 695769) Radio ATS-803A; Sangean; Chung Ho (ID = 695770) Radio
ATS-803A; Sangean; Chung Ho (ID = 695771) Radio ATS-803A; Sangean; Chung Ho (ID = 695772) Radio
ATS-803A; Sangean; Chung Ho (ID = 695773) Radio ATS-803A; Sangean; Chung Ho (ID = 695776) Radio
ATS-803A; Sangean; Chung Ho (ID = 696309) Radio ATS-803A; Sangean; Chung Ho (ID = 696310) Radio
Use red slider bar for more.

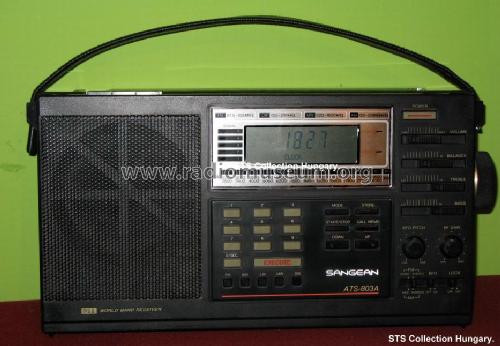

ATS-803A; Sangean; Chung Ho (ID = 110135) Radio
Sangean; Chung Ho: ATS-803A [Radio] ID = 110135 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model ATS-803A, Sangean; Chung Ho City

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Sangean; Chung Ho City
Year: 1989–1995 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Superhet, double/triple conversion; ZF/IF 55845/450 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: ATS-803A - Sangean; Chung Ho City
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 310 x 160 x 60 mm / 12.2 x 6.3 x 2.4 inch
Notes AM coverage 150 - 29999 kHz; AM, SSB(BFO), 2 switchable bandwidths (improved model!); keypad direct frequency entry, 9 memories; digital clock / timer,

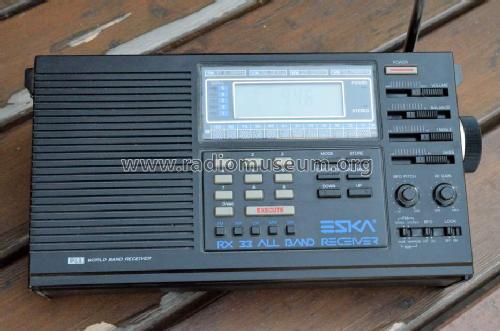

also sold as Siemens RK-651, Intersound-WE12, Realistic DX-440, Eskab RX-33;
an improved version of the Sangean ATS-803 offering 2 IF-bandwidths and improved dynamic range. Ext. Power jack: DC 9 V.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 169.00 $
Collectors' prices

Model page created by Martin Bösch. See "Data change" for further contributors.
