• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232010

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA60 2SA49 2SA53 2SB54 2SB54 2SB54 2SB56 2SB56 1N60 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / AA 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Power out
• 0.17 W (0.22 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

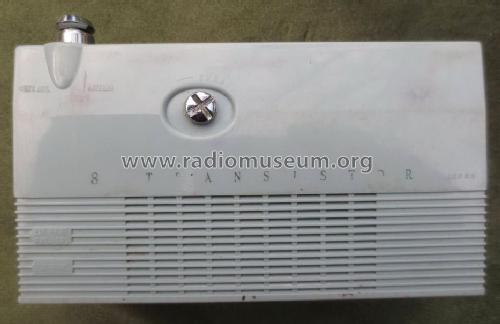

• Model: All Wave 8 Transistor 8S-P8 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6 x 3.25 x 1.5 inch / 152 x 83 x 38 mm

• Notes

• Wave bands:
  MW: 535 - 1,605 kc
  SW: 3.9 - 12 mc

  Outlets for two earphones, connector for auxiliary antenna. Genuine cowhide carrying case.

  Marketed in Australia by Sanyo Sales & Service Co. during 1961 & sold for £40/19/-, batteries included.

• Net weight (2.2 lb = 1 kg)
• 1 lb 2 oz (1.125 lb) / 0.511 kg

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• J.R. Publications Transistor Radio Service Handbook (E Series Handbook Vol. 1, 1962, Page S210.)

• Author
• Model page created by James Ruggles. See "Data change" for further contributors.
