• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200106

• Number of Transistors
• 7

• Semiconductors
• 2SC930 2SC930 2SA101 2SB185 2SC537 2SB187 2SD187 LA1201

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.2 cm = 1.7 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

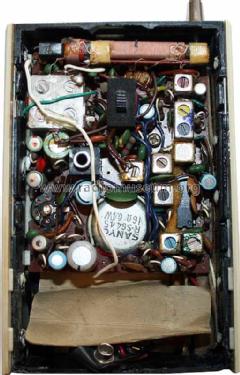

• Model: Portable transistor radio 10F-892 - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 80 x 124 x 42 mm / 3.1 x 4.9 x 1.7 inch

• Net weight (2.2 lb = 1 kg)
• 0.370 kg / 0 lb 13 oz (0.815 lb)

• Author
• Model page created by Pentti Lamminen. See "Data change" for further contributors.
