• Country
• Italy

• Manufacturer / Brand
• SARCA (S.A.R.C.A., SARKA); Milano

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222210

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

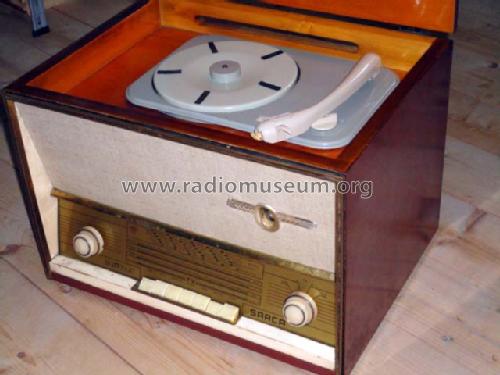

• Model: K579 Serie 161 - SARCA S.A.R.C.A., SARKA;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 435 x 310 x 325 mm / 17.1 x 12.2 x 12.8 inch

• Notes

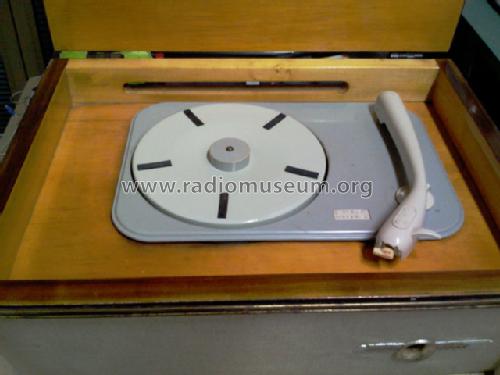

• Gamme AM FM TV. Giradischi Lesa Gutex 16-33-45-78 giri.

• Author
• Model page created by Raffaele Pedrini. See "Data change" for further contributors.

• Other Models

• Here you find 42 models, 40 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
