• Country
• Belgium

• Manufacturer / Brand
• SBR Société Belge Radio-Electrique, Bruxelles

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75561

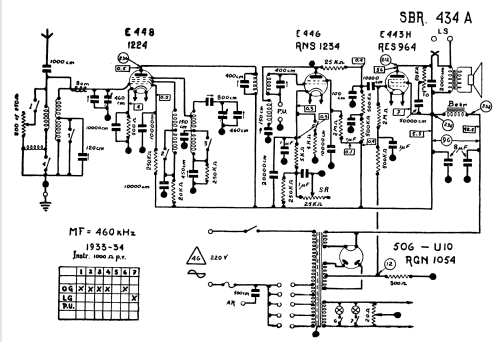

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• E448 MSP4 PT4N U10

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; Anode bend detection

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 140; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ondolina 434A2 - SBR Société Belge Radio-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• • Despite the name "Ondolina", this radio is a superheterodyne and is the exception to the rule that "Ondolina" is TRF and "Super Ondolina" is superheterodyne.
  • There is an alternative tubeset from Philips: E448 E446 E443 506

• Price in first year of sale
• 2,200.00 BFr

• External source of data
• P.H. Brans

• Mentioned in
• Manuel de la Radio 1940, van Cortenberghe

• Literature/Schematics (1)
• Radio Schakelingen, J.G.R. van Dijck

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
